H3: the linear fluid revolution

The world has been waiting for it, but no one knew what to expect. After keeping us on tenterhooks for a whole year, HYT's H3 has now burst onto the watchmaking scene. But can we still use the word "horology" to describe it?

Starting with a blank page
Known for blurring the lines, HYT has once again defied the limits of what is possible. The sculptural H3 is essentially inspired by a fluid portrayal of time, a field which the young independent brand has not only conquered, but one which it has radically (re)created in all areas.
Following on from the H1 and H2, HYT is back and shaking the foundations of watchmaking once more. With the H3, the brand is deconstructing time and reconstructing it around its founding principle: two bellows injecting a capillary with fluid which moves to display the time.
In the conventional sense, there is no midday and there are no hands. The H3 is reinventing the wrist watch with its case measuring 62 x 41 mm. Its bespoke shaped movement is a perfect fit for each contour.

HYT and its partners have succeeded in creating a timepiece with a highly complex architecture. One of the main challenges lay in machining the case and the sapphire crystal. When it came to the movement, one of the most delicate steps in creating the H3 involved recovering the energy provided in the retrograde movement, which then powered the semi-instantaneous rotation of the watch's dial.
Its construction was initially inspired by the desire to have a linear portrayal of time, which resulted in a design with the bellows at opposite ends. The movement engineering teams then worked around this constraint – which became the stylistic signature of the H3 – to create the complete calibre.

A fully linear portrayal of time
The upper part of this living sculpture houses the bellows mechanism. The first, on the left, drives the progression of the fluid and therefore the time display. Its counterpart, on the right, compensates for this progression in the capillary. Less than one millimetre in diameter, this glass tube, operating in a vacuum, still contains two fluids: the first, (waterbased) yellow fluid serves to tell the time; the second (viscous-based) translucent fluid works in opposition. A meniscus separates them.

The central part of the H3 is reserved for the time display. This features neither hands, nor satellite, nor any other system of time-reading ever invented before. Instead, HYT has created a rotating dial with 4 faces arranged along the time display tube. Each of these
 aces is graduated with 6 hours, thereby enabling the 24 hours of the day to be displayed.
To ensure a harmonious and linear progression between the hours, HYT has developed an exclusive movement. A complication is used to rotate the dial on itself, to display the section concerned for the current time. The other three faces are not visible. At the end of each 6-hour period, the time display makes a retrograde movement. During this time lapse, the dial begins a controlled rotation, enabling the time display to jump semiinstantaneously.
When the liquid's retrograde movement is engaged, the calibre then uses the energy stored in the bellows and provides the force needed by the hour dial movement.
To ensure the technical and stylistic cohesion of the H3, HYT has also developed a linear display for the minutes. On the lower right-hand part of the timepiece, there is a twin articulated arm which sweeps across a graduated rule. At its end, the retrograde mechanism instantaneously returns to its starting point.
The time is set using a push-button, located on the left of the assembly. With each press, the central time display bar turns on itself by one quarter of a turn. This ingenious principle enables the desired time period to be quickly set by jumping in periods of six hours. Next, the circular movement of the crown enables the exact hour and minutes chosen to be set within this period.

Mechanical choreography in triple time
Each of the H3's vital organs therefore follows its own rhythm, bringing the dial to life as well revitalising time itself. Exclusively composed by HYT, the choreography was once again orchestrated by APRP (Audemars Piguet Renaud & Papi), also responsible for its predecessor, the H2.

"We started with a blank page and we capitalised on our fluid experience to create something entirely new", explained Vincent Perriard, HYT CEO. "Placing the bellows in opposition was something that really posed a challenge. They are coupled by a mechanical assembly (comprising a spindle, sensor and thermal compensator), and fitting this between the bellows was a very delicate operation."

An exceptional limited edition

As HYT had explained from the very start, the H3 stands out as the most exceptional timepiece in the brand's collections. Thanks to its two barrels, it boasts a 170-hour power reserve (equivalent to around 7 days). Produced in charcoal grey PVD-coated titanium and platinum, the series will be limited to 25 timepieces. The first timepiece n°00/25 is  available at Chronopassion


Technical specifications

H3 DATA SHEET
Case:
Charcoal grey PVD-coated titanium and platinum with a micro-blasted, satin finish
- Length: 62 mm;
- Width: 41 mm
- Height: 16 mm
- Screw-down dynamometric crown sheathed in rubber
- Screwed offset lugs
- Domed sapphire crystal (box) with anti-reflection coating
- Open screw-down back in titanium
- Water-resistant to 30 metres
Functions:
- Retrograde fluidic hours
- Retrograde minute indicator

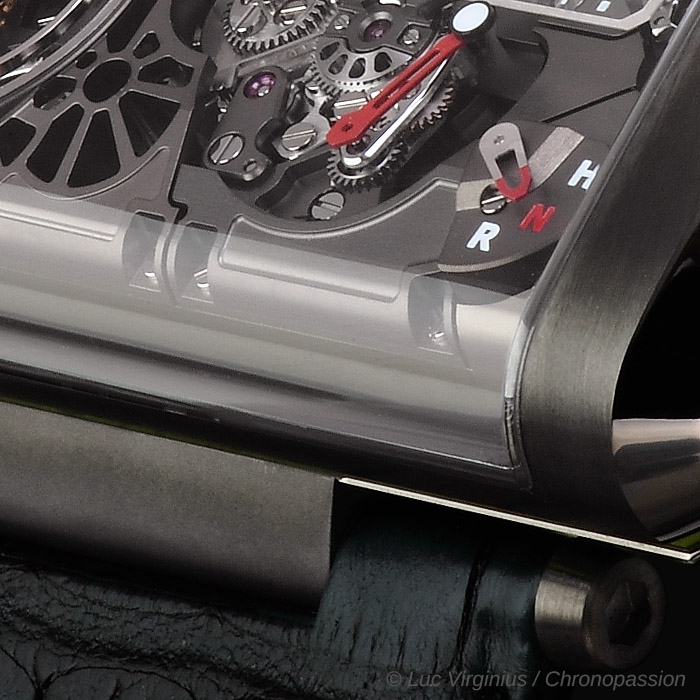

- Crown position indicator (T-N-W)
- Power reserve indicator (on back)
- Push-button for hour rotation
Movement:
Mechanical with manual winding, exclusive HYT calibre
- 21,600 Vph, 3 Hz, 53 jewels
- Decorated micro-blasted charcoal grey PVD-coated titanium bridges with titaniumcoloured
satin-finished accents, rhodium-plated bellows
- 170-hour (7-day) power reserve
Dial:
- Sapphire minutes dial
- Aluminium hours dial
Strap:
- Black alligator leather
- Charcoal grey PVD-coated titanium folding buckle
Reference: 361-TP-01-GF-AG
Series limited to 25 pieces

Who's who

They are both as unpredictable and unruly as one another, and never happier than when the entire industry voices its doubts about their choices. In the end, what brings together Vincent Perriard and Laurent Picciotto is perhaps their insatiable curiosity, driving them where no-one else has even dreamed of going. Not merely out of a desire to be provocative, but simply from a constant yearning to liven up the art of watchmaking.
Even if it is always preferable to appraise a brand over time rather than judge it on the basis of a one-off, the power of its ambition can nonetheless be gauged by its first timepiece. At HYT, Vincent Perriard formed the opinion that traditional watch mechanisms might be all well and good, but that fluid mechanics were even better. This led to the idea of displaying the time using a liquid.
“Right from the start, when Vincent came to see me with this somewhat crazy idea, I found the approach to be very ingenious,” recalls Laurent Picciotto. “However, I immediately warned him against a merely stylistic exercise without any real future; he needed to display the genuine art of watchmaking – the only thing that could win him the esteem of his peers.”
For its co-founder, the practical outworking of this advice for the up-and-coming brand was to develop a purebred watch mechanism – a genuine in-house movement that added the full weight of credibility to the fluid time display.
“I must admit that I still had some reservations until I finally saw the movement that was to support the concept,” says Laurent Picciotto. And that’s when all doubt was dispelled – completely new mechanics, a view from the back displaying two incredible pistons, and a front face revealing traditional watch workings.
Did that provide enough reassurance for knowledgeable watch lovers? Definitely. But the retailer looks a little further. “I also took the teams and their backgrounds into consideration. What I saw at HYT was people from the medical sector, researchers, committed guys who were keen to succeed,” continues Laurent Picciotto. “I’m confident about the way they see things. They have the right resources – and the right methods.”
As 2012 draws to a close, the first HYTs have of course found a home at Chronopassion – probably for a very short space of time, given that demand is already far outstripping supply. However, this is a brand that we’ll be seeing plenty more of. “HYT will find its cruising speed and make its mark in the long term. It’s also a brand that’s likely to become a source of inspiration for many other independent watchmakers,” concludes Laurent Picciotto.

Journalist : Olivier Müller
